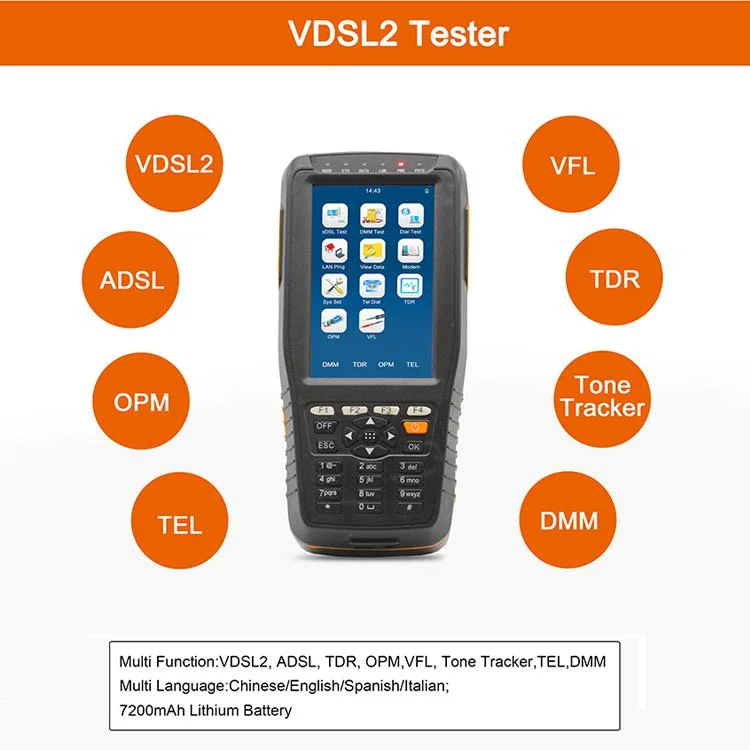

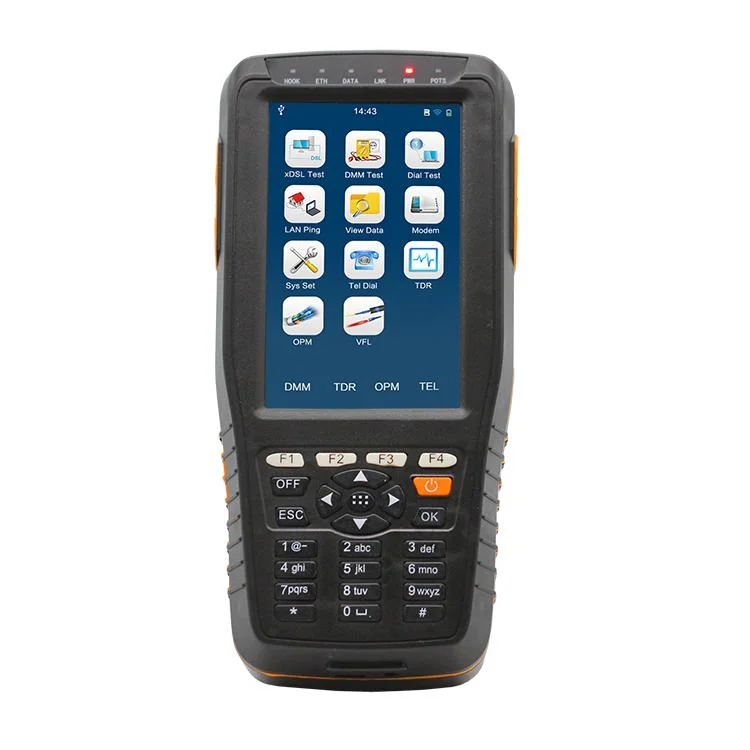

X-5008 VDSL tester specially designed for slid line test (xDSL include: ADSL, ADSL2, ADSL2+, READSL, VDSL2 etc) and maintenance It provides xDSL test, PPPoE dial test, DMM test, Modem emulation, line voltage indication and so on.
X-5008 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
It is one mufti-function tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc.
Functions:
Key Features:
Specifications:
X-5008 VDSL Tester also introduces the Optical Power Meter and Visual Fault Locator function into the unit, as well as the TDR function;
It is one mufti-function tester with smart size, true color LCD and powerful management software as well as the 6600mah rechargeable battery etc.
Functions:
- DSL Physical layer test
- Modem Emulation (Replace the user Modem completely)
- PPPoE Dialing (RFC1683,RFC2684,RFC2516)
- PPPoA Dialing (RFC2364)
- Telephone Function
- DMM Test
- Ping Function (WAN & LAN)
- Data upload to computer and software management
- Setup system parameter: backlight time, shut off automatically time without operation,
- Revise PPPoE / PPPoA dial attribute, user name and password; restore factory value and
- Check dangerous voltage
- Optical Power Meter (Optional)
- Visual Fault Locator (Optional)
- Tone Tracker (Optional)
- TDR Cable Fault Locator (Optional)
Key Features:
- Test objects: ADSL; ADSL2; ADSL2+; READSL; VDSL2
- Fast Copper tests with DMM (ACV, DCV, Loop and Insulation Resistance, Capacitance,
- Supports Modem emulation and simulating login to Internet
- Supports ISP login (user name / password) and IP Ping test (WAN PING Test,
- Supports all multi-protocol, PPPoE / PPPoA (LLC or VC-MUX)
- Connects to CO via alligator clip or RJ11
- Rechargeable Li-ion Battery
- Beep and LEDs alarm indications (Lower Power, PPP, LAN,xDSL)
- Data memory fuction
- LCD display, Menu operation
- Auto shut off if no any operation on keyboard
- Compliant with all known DSLAMs
- Software management
- Simple, portable and money-saved
Specifications:
| ADSL2+ | |
| Standards | ITU G.992.1(G.dmt),ITU G.992.2(G.lite),ITU G.994.1(G.hs), ANSI T1.413 issue #2,ITU G.992.5(ADSL2+)Annex L |
| Up channel rate | 0~1.2Mbps |
| Down channel rate | 0~24Mbps |
| Up/Down attenuation | 0~63.5dB |
| Up/Down noise margin | 0~32dB |
| Output power | Available |
| Error test | CRC, FEC, HEC, NCD, LOS |
| Display DSL connect mode | Available |
| Display channel bit map | Available |
| ADSL | |
Standards | ITU G.992.1 (G.dmt), ITU G.992.2(G.lite) ITU G.994.1(G.hs), ANSI T1.413 Issue # 2 |
| Up channel rate | 0~1Mbps |
| Down channel rate | 0~8Mbps |
| Up/Down attenuation | 0~63.5dB |
| Up/Down noise margin | 0~32dB |
| Output power | Available |
| Error test | CRC, FEC, HEC, NCD, LOS |
| Display DSL connect mode | Available |
| Display channel bit map | Available |
| VDSL2 | |
| Be compatible with ADSL2+, ADSL standard. | |
| DSL line attenuation | |
| DSL line noise margin | |
| DSL line up/down channel speed (Inter/Fast mode) | |
| DSL line up/down maximum rate | |
| DMT sub channel bit number: 0~15, and each sub channel frequency points | |
| DSL line error number (CRC, HEC, FEC, LCD, OCD) | |
| DSL line local output power | |
| DSLAM information | |
| Error Code Second | |
| Impulse Noise Protection (INP) | |
| Support 7 VDSL2 profiles: profile 8a, 8b, 8c, 8d, 12a, 12b, 17a | |
| DMM Test | |
| DC voltage (V): | 0~400 |
| AC voltage (V): | 0~400 |
| Loop resistance(Ω): | 0~20000 |
| Capacitance (nF): | 0~1000 |
| Insulation resistance (MΩ): | 0~50 |
| Optical Power Meter ( Optional) | |
| Measurement range: | -70~+10dBm or -50~+26dBm |
| Wavelength | 850nm,1300nm,1310nm,1490nm,1550nm,1625nm |
| Visual Fault Locator (Optional) | |
| Output Power | 10mw |
| Wavelength | 650nm ± 20nm |
| Tone Tracker (Optional) | |
| With supplied accessories, it can do cable tracing and find the trend of the lines | |
| TDR Function (Optional)-Auto Test the cable fault distance (Cable Break/ Cable Mix) | |
| Test Range | <2.5km |
| Dead Zone | <1m |
| Resolution Rate | 1m |
| General Specification | |
| LCD | 800x480 TFT |
| Power supply | Internal Rechargeable 6600mAH Li-ion battery |
| Battery Duration | 4 to 5 hours |
| Working temperature | 0-40 oC |
| Working moisture | 5%-90% |
| Dimensions | 170mm×70mm×52mm |
| Weight: | <0.6kg |
