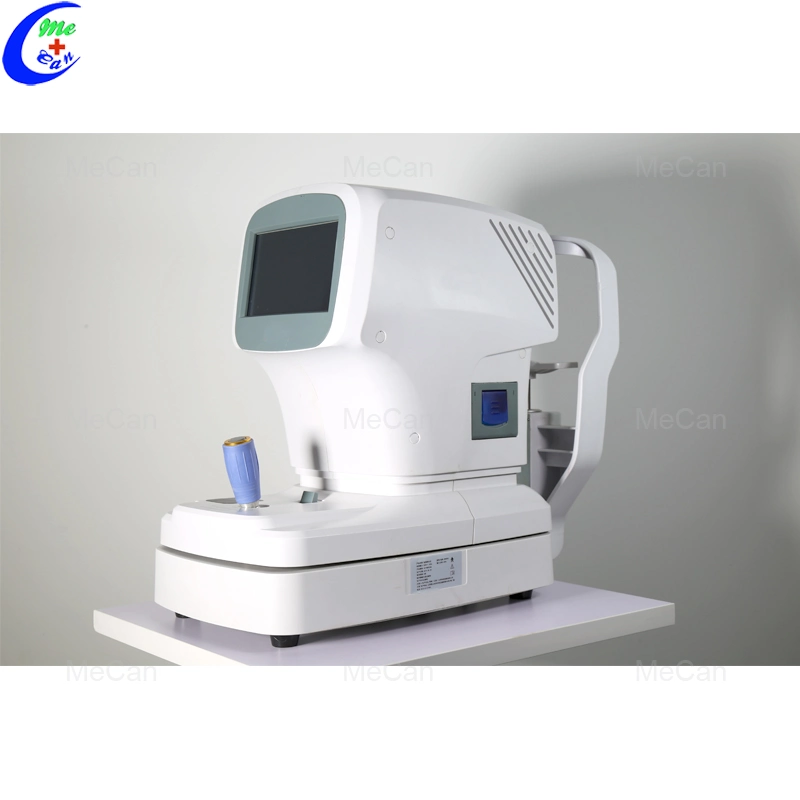

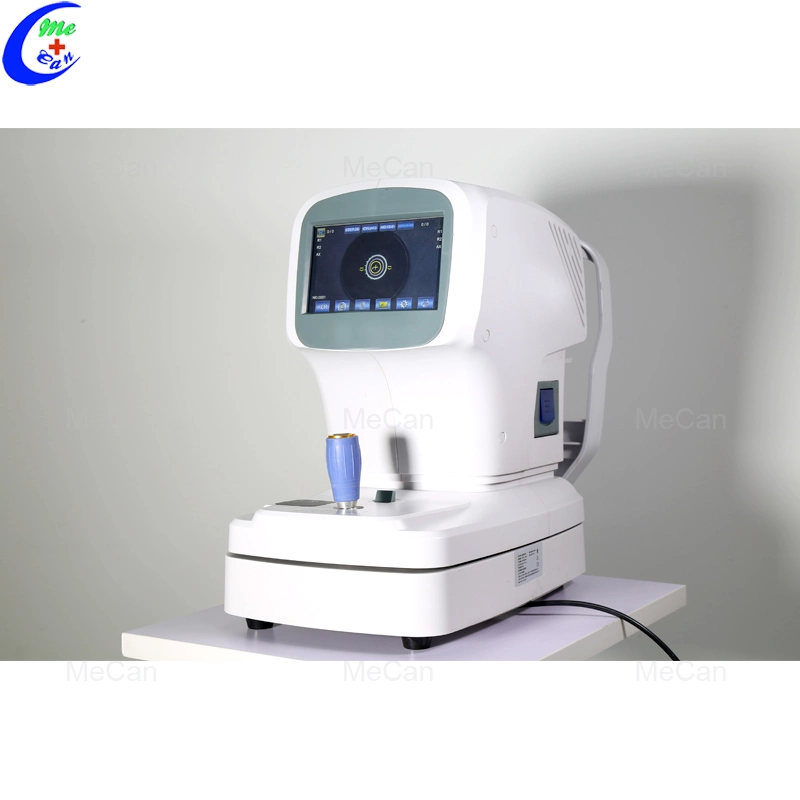

High Quality Big Screen Ophthalmology Optical Auto Refractometer for Sale
Model: MCO-KR800
| Range of measuring | SPH: -20.00m1~+20.00m1 (Step: 0.01m1/0.06 m-/0.12 m1/0.25 m-1) |
| Cylinder: 0.00 m1~±6.00 m-1 (Step: 0.25 m-1) | |
| Axis: 0° ~180° (Step: 1° ) | |
| Pupil measuring range | 55mm~75mm (Step: 0.1mm) |
| Vertex Distance | 0.00mm,12mm, 13.5mm. 1 5mm |
| Min. measurable pupil | φ2.0mm |
| Chart | Fogging chart system |
| Display | 7 inch TFT True color Touch screen |
| Printer | 57mm Thermal printer |
| Power supply | AC220V; 50Hz |
| Size | 280 (W) *530 (D) *480 (H) |
| N.W. | 18kg |
Model: MCO-KR800(K)
| Measurementmode | K& R Mode | Measurement of refractive power and corneal curvature |
| REF Mode | Refractive measurement | |
| KER Mode | Measurement of corneal curvature | |
| Refractive measurement | Vertex Distance (VD) | 0mm, 12mm,13.5mm,15mm |
| SPH | (-20.00~+20.00) m-1 (0.01/0.06/0.12/0.25m 1Step) (VD=12) | |
| Axis(AX) | 1° ~180° (Step1 ) | |
| Pupil Distonce(PD) | 55mm~75mm (Precision 0.1mm) | |
| Min. pupil diameter measurable | φ2.0mm | |
| Sighting mark | Automatic fogging target | |
| Corneal measurement | Radius of curvature | 6.5mm~9.1mm (0.01mm Step) |
| Corneal power | 33.00m-1~67.00m-T 0.01/0.06/0.12/1 Step) | |
| Corneal astigmatism | 0.00m1~15.00m-1 (0.06/0.12/0.25m1 Step) | |
| Axis | 0°~180° (Step1°) | |
| Corneal diameter | 2.00~12.00mm | |
| Specification | Display | 7 inchTFTTrue color Touch screen |
| Built- in printer | 57mm Thermal printer | |
| Power saving mode | Setting the screen saver time itself | |
| Power supply | AC220V; 50Hz | |
| Size/Weight | 280 (W) *530 (D) *480 (H) /18kg |
