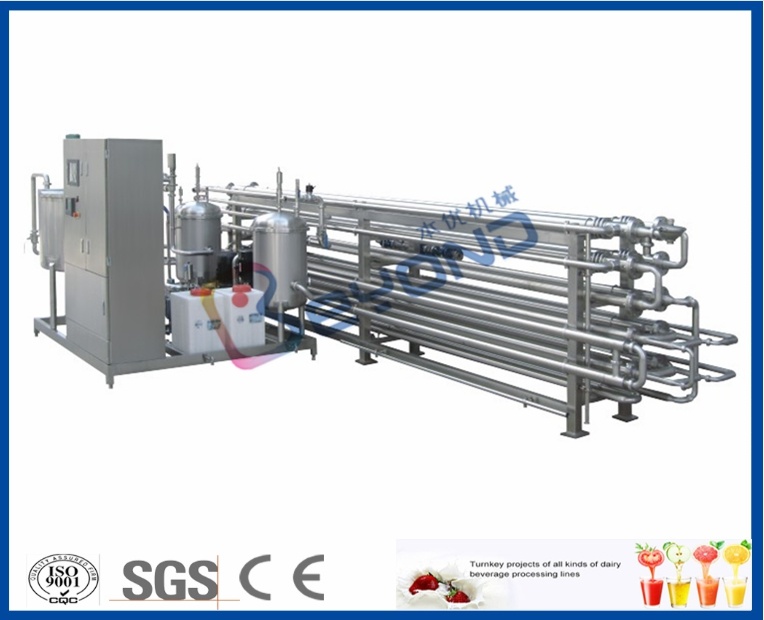

tube in tube sterilizer fruit juice sterilizer tubular type sterilizer
Application
This machine is used to perform continuous sterilization on much thicker products, such as various of concentrated juice,paste and similar high viscosity products.

Procedures technical:
25ºC→95-121ºC(120S-180S)→25ºC-35ºC, the final products can be filled in aseptic large bags for room temperature storage;

   Characteristics
Compared to the other model, this machine has the following characteristics:
1.       Temperature difference between the product and the heating medium is small, so the heating is even; the heating tubular adopts tube in tubes type and the surface of the tube is mirror polished to reduce the deposition on the surface which will longer the working life of the machine.
2.       It is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable.
3.       It is  precise and reliable in sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable;
4.       The inner layer of the product tube adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
5.        The system is strong safety, the fittings all adopts good performance and quality reliable materials,it is       designed to value the safety of both operator and machine
6.       The main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
7.       With self sterilize system;

Machine configuration
 Full automatic control: Spirax Sarco reducer valve from UK, German Burkert & Spirax Sarco temperature control system, German Labom temperature transducer, Yuanan pipes and valves from shanghai , hot water pump from Italy, Siemens LOGO touch-screen and PLC full automatic control, the precision of temperature control is ±0.5 degree, with self CIP and SIP system

Technical parameter
ModelTG-UHT-1.5TG-UHT-3TG-UHT-5
Capacity(L/H)150030005000
Material inlet temperature25ºC-40ºC25ºC-40ºC25ºC-40ºC
Holding time(seconds)120-180120-180120-180
Sterilizing temperature95~121ºC95~121ºC95~121ºC
Material outlet temperature25ºC-35ºC25ºC-35ºC25ºC-35ºC
Tower water inlet temperature≤30ºC≤30ºC≤30ºC
Steam pressure0.5MPa0.5MPa0.5MPa
Steam consumption~150Kg/h~210Kg/h~280Kg/H
Compressed air pressure0.6MPa0.6MPa0.6MPa
Compressed air  consumption50L/H50L/H60L/H
Dimension(mm)7000×2000×20007000×2000×20007000×2000×2200
Machine weight1700kg2000Kg2200 Kg

Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months

Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle

Product storage condition: room temperature; low temperature;

Related machinery of fruit processing line
Fruit storage silo-- Washing, sorting machine-- Grading/classifier machine
Squeeze extractor--Juice refiner-separator-evaporator-- Juice concentrate product
Fruit flesh/pulp collector-sterilizer--filling machine-fruit flesh
Essential oil refiner-fruit oil
Fruit residues collector-animal feed
Soaking extraction, pre-cooking, pulping, quick freeze, stemmer, ultra-filtration, decolor, destoner, crusher, stone washer, brusher washer, pine apple extractor, refiner, enzymolysis, filtration, CIP cleaning system

Related machinery of dairy(cheese, butter, milk, yoghurt,cream) processing line
Large outdoor storage tank, agitator tank, jacket tank, ferment growing tank, emulsification tank, milk weighing, milk receiving/collecting, extracting, pasteurizer yoghurt, UHT, HTST pasteurizer, plate pasteurizer, tubular UHT sterilizer, spraying type pasteurization, cooling tunnel, bottle tilting sterilization chain, CIP cleaning system, full-auto CIP, semi-auto CIP, evaporator, curd cutting, whey draining, cheese making, scalding/stretching/molding, cheese vat, mozzarella cheese, cheddar cheese, blending system, pre-pasteurization, cream separator system, powder melting, dissolving system, homogenizer system, turn-key project.
