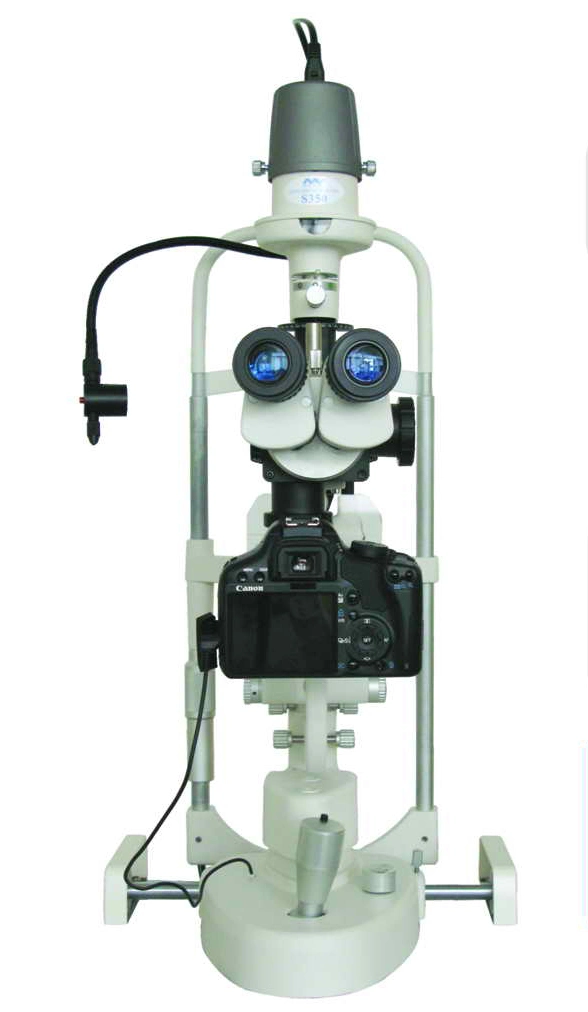

Digital Slit Lamp Microscope Ophthalmic
MCE-S350-DC


Microscope specifications
Microscope type:    Galilean system
Magnification changer:   Revolving drum(5 steps)
Total magnification:   6X,10X,16X,25X,40X
Ocular magnification:   12.5 X
Ocular field:     Ø18mm
Inter pupillary distance:  52mm~78mm
Ranger of adjusting eyepieces: +6 to -6 diopters
Object image field Ø in mm:  34.7(6X),22(10X),13.5(16X),8.5(25X),5.5(40X)
Slit illumination
Slit image width:   0~14mm continuous
Slit image length:   1~14mm continuous
Light source:    6v/20w halogen incandescent light bulb
Slit image radial range:  0~180°
Filters:      Heat absorbing, ND filter, red free,cobalt blue
Lamp:     6v20w Halogen Lamp
Intensity of illumination:  ≥50KLX
Instument base
longitudinal movement: 90mm
lateral movement  100mm
vertical movement  30mm
fine base movement 15mm
Chin-rest
Fixation target:  Led
Vertical adjustment: 80mm
Power Supply
Input voltage:   220v/110v ±10%
Input frequency:  50Hz/60Hz
Output power:  30VA(max)
Output voltage:  Lamp 6V
Fixation 3V
Packaging
Carton:  740mm X 450mm X 500mm
Gross weight: 22Kg(without electrical desktop and options)
Net weight: 17Kg(without electrical desktop and options)

Standard Accessories:
Beam splitter
Digital camera adaptor
Backlit background illumination module
Trigger on joystick
Digital SLR camera
